CA/RCA45DD impulzni ventil

Kot profesionalni proizvajalec vam želimo zagotoviti visokokakovosten kavljski ventil CA/RCA45DD. Na Star Machine Qingdao smo specializirani za dostavo kakovostnih pulznih reaktivnih ventilov, ki služijo kot stroškovno učinkovite nadomestitve za ventile serije Goyen. Naše možnosti ima možnosti, kot so serija DD, serija T in MM Series. Ponujamo tudi rezervne dele in zamenjave diafragme, da zadovoljimo vse vaše potrebe po vzdrževanju.

Pošlji povpraševanje

Opis izdelka

CA/RCA45DD Pulse Valve has two versions, remote pilot type and solenoid coil type.

RCA means remote control, this method can reduce the damage rate of the coil.CA means solenoid coil control model, suitable for common dust removal system, no need to modify the dust removal system.

CA & RCA Series Pulse Jet Valves:

1. Threaded Pulse Jet Valve: CA15T, CA20T, CA25T, CA35T, CA45T, CA50T, CA62T, CA76T

2. Dresser Nut Pulse Jet Valve: CA25DD, RCA25DD, CA45DD

3. Immersion Pulse Jet Valve: CA50MM, CA62MM, CA76MM, CA89MM

4. Flanged Pulse Jet Valve: CAC25FS, CAC45FS

5. Remote Pilot Pulse Jet Valve: RCA3D2, RCA25DD, RCA45T, RCA50T

Features:

Body and Dresser Nuts: Aluminium(diecast)

Ferrule: 305 SS

Armature: 430FR SS

Seals: Nitrile or Viton

Spring: 304 SS

Screws: 302 or 304 SS

Dresser Nut Seals: Nitrile or Viton

Diaphragm Seat: PA-66 (standard), Viton coated mild steel or High Density PE.

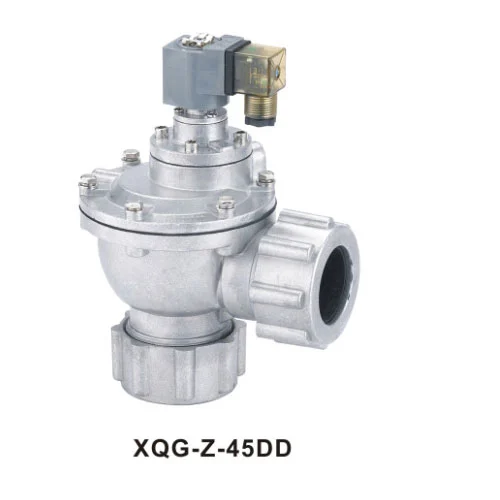

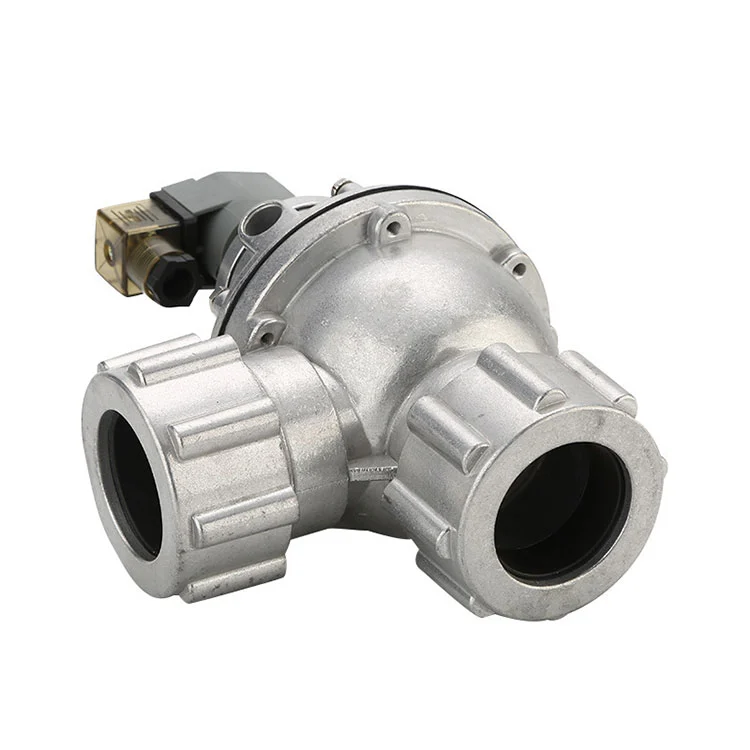

CA/RCA45DD Quick Mount Pulse Jet Valve

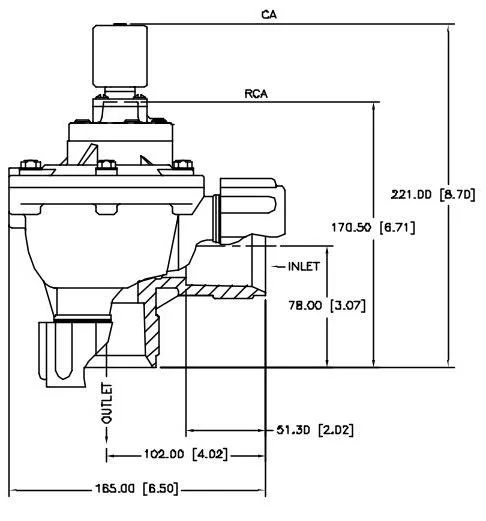

Diagram of CA/RCA45DD

DD Series Pulse Valve Technical Parameters:

Model		RCA20DD	RCA25DD	RCA45DD
Nominal Size		20	25	45
Port size	mm	20	25	40
Port size	in	3/4	1	1 1/2
Number of Diaphragms		1	1	2
Flow	Kv	12	20	44
Flow	Cv	14	23	51
Pressure (Psi)		5 to 125	5 to 125	5 to 125
Temperature℃	NBR	-40 to 82	-40 to 82	-40 to 82
Temperature℃	FKM	-29 to 232	-29 to 232	-29 to 232
